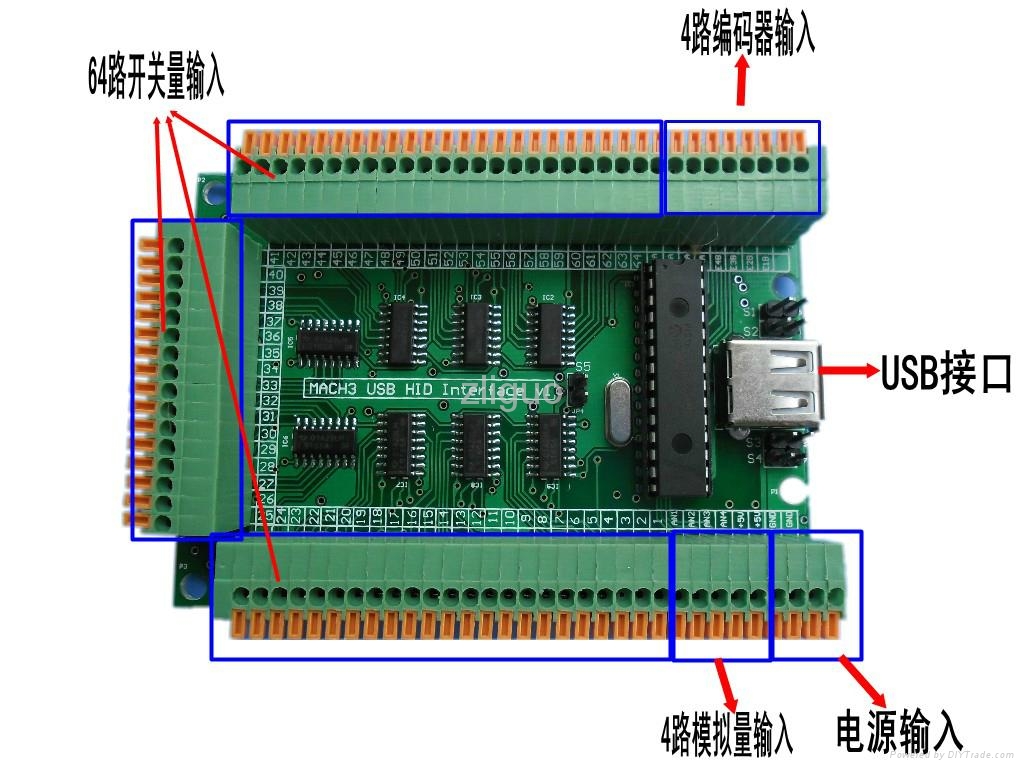

Mach3 USB interface board with on-board USB interface and matching USB cable. This manual control board is widely used for CNC console, control box, handwheel and manually controlled box, etc.
Description:
- 4 Encoder Input: Handwheel input
- Support all Mach3 versions, including the latest Mach3 R3.042.040 version
- Support Windows series, requires no driver installation
- Support USB hot plug and monitor USB connection status at any time
- Applications: CNC console, control box, handwheel, manually controlled box, etc
- Min. Supply Voltage: 4.5V
- Rated Supply Voltage: 5V
- Max. Supply Voltage: 5.5V
- Board Size: Approx. 3.9 x 2.7 x 0.6 inch
- USB Cable Length: Approx. 57 inch
Package Includes:
- 1x Mach3 USB Interface Board
- 1x USB Cable
board wiring schematic
